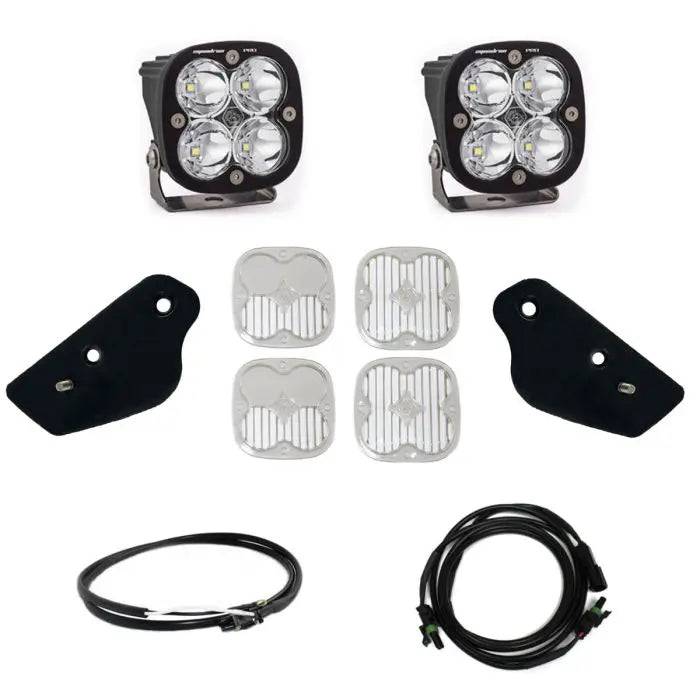

The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This Baja Designs lighting kit includes a pair of Squadron Pro, Squadron Sport, XL Sport, XL Pro, or XL80 LED auxiliary lights in spot, along with a set of wide cornering, and wide cornering lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a relay style harness with toggle switch, or optional upfitter style harness and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.
Features:
-
Satisfactions Guarantee – 30 Day Money Back Guarantee
-
Limited Lifetime Warranty – Complete Purchase Protection
-
uService® – Replaceable Lenses And Optics
-
ClearView® – All The Light, Right Where You Need It
-
MoistureBlock™ – Waterproof, Rain Proof, Submersible
-
CopperDrive® – Only LED Driven At 100%
-
5000K Daylight – Less Driver Fatigue, Natural Color
Light Specifications:
Squadron Sport
-
Lumens: 3,150 Utilizing 4 LEDs
-
Wattage/Amps: 26W / 2A
-
Dimensions: 3.07" x 2.77" x 3.07"
-
Weight: 12 ounces
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Powder Coated Cast Aluminum
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Squadron Pro
-
Lumens: 4,600 Utilizing 2 types of Cree LEDs
-
Wattage/Amps: 40W / 2.90A
-
Dimensions: 3.07" x 2.77" x 3.07"
-
Weight: 12 ounces
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Hard Anodized & Powder Coated Cast Aluminum
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
XL Sport
-
Lumens: 3,150 Utilizing 4 LEDs
-
Wattage/Amps: 26W / 2A
-
Dimensions: 4.43" x 3.65" x 4.43"
-
Weight: 2.45 lbs
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Powder Coated Cast Aluminum
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
XL Pro
-
Lumens: 4,600 Utilizing 4 Cree XP-L LEDs
-
Wattage/Amps: 40W / 2.90A
-
Dimensions: 4.43" x 3.65" x 4.43"
-
Weight: 2.45 lbs
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Hard Anodized & Powder Coated Cast Aluminum
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
XL80
-
Lumens: 9,500 Utilizing 4 Cree LEDs
-
Wattage/Amps: 80W / 5.50A
-
Dimensions: 4.43" x 3.65" x 4.43"
-
Weight: 2.45 lbs
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Hard Anodized & Powder Coated Cast Aluminum
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
