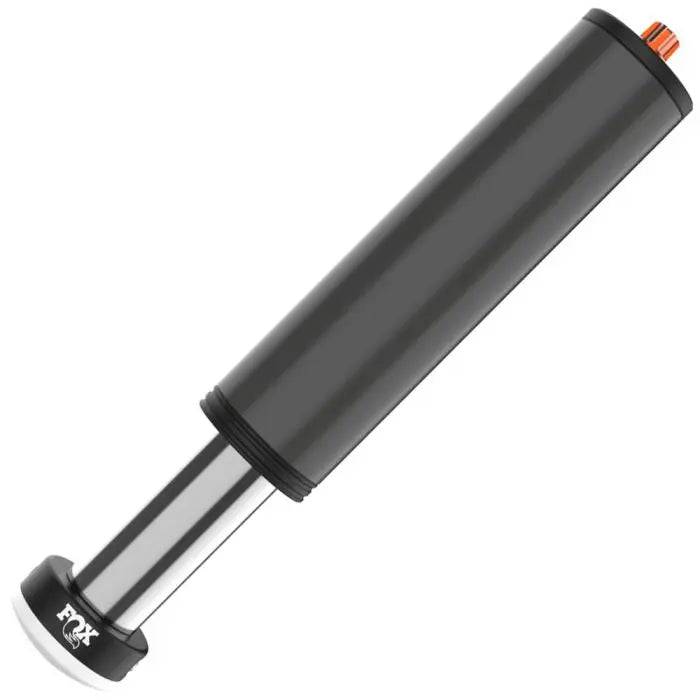

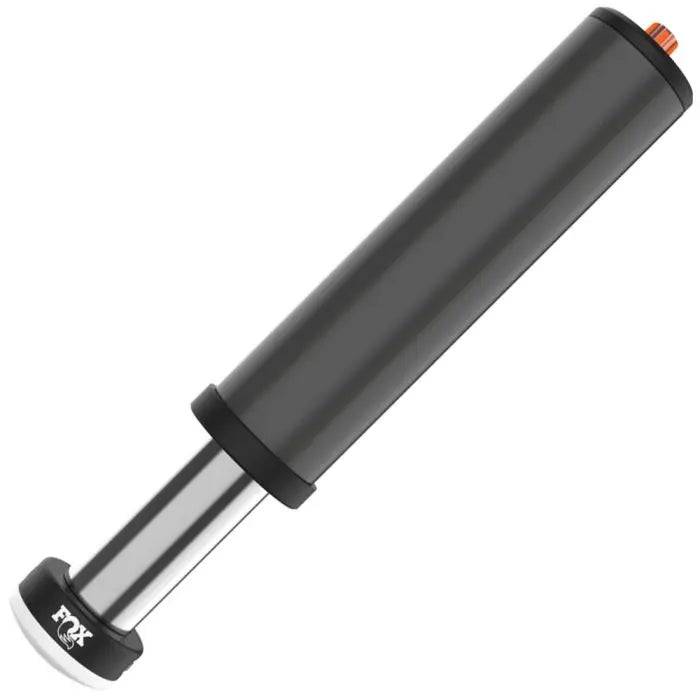

Fox's all-new Factory Race Series 2.5 bump stops were developed specifically for off-road racing to provide precise control of the last few inches of suspension travel and prevent harsh bottoming while delivering unprecedented levels of performance and durability.
New Features:
- Dual coated steel body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat
- PTFE coated bronze impregnated steel piston wearband

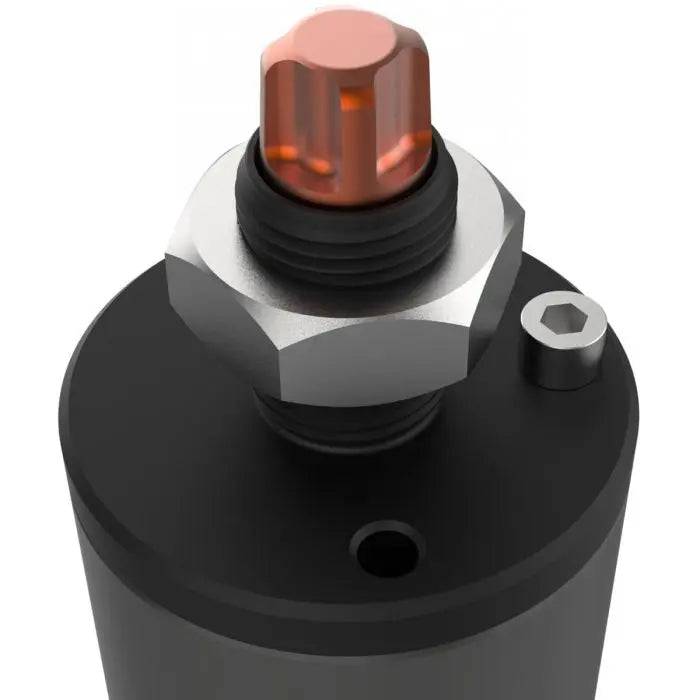

- Stainless steel FOX Air Valve (FAV)
- Orange anodized billet aluminum FAV cap

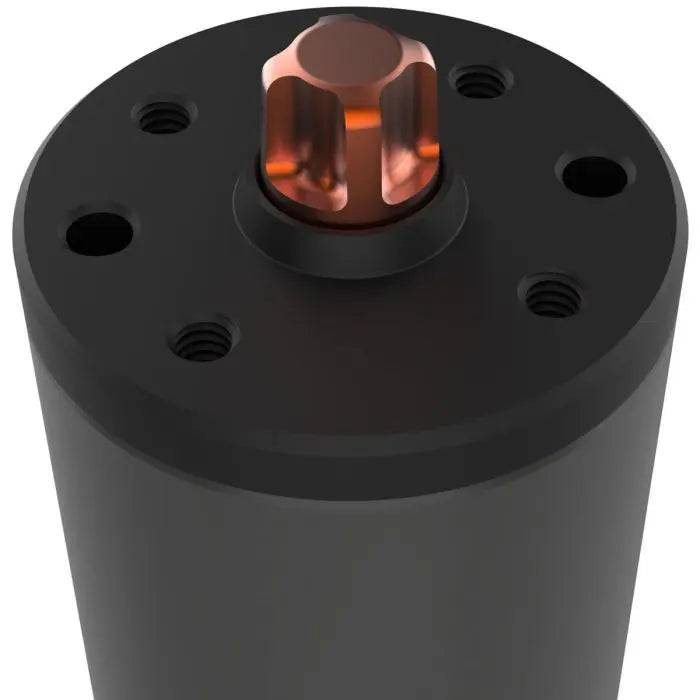

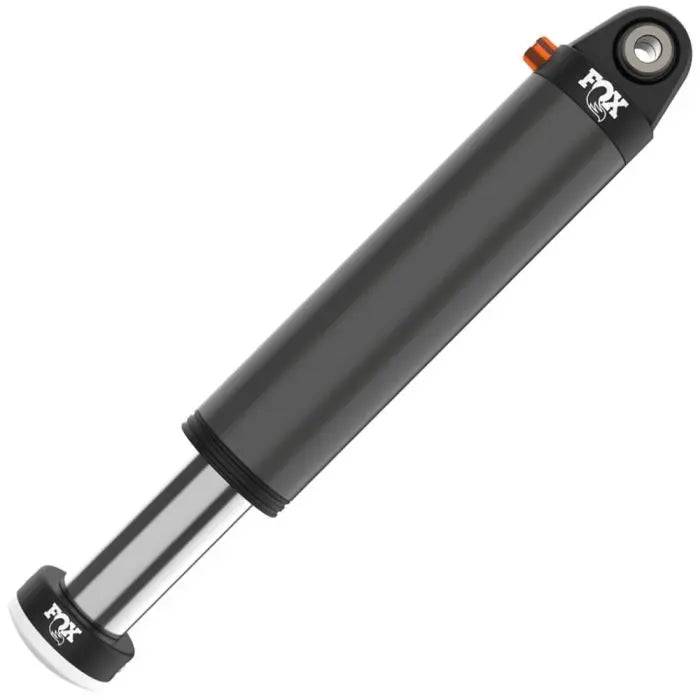

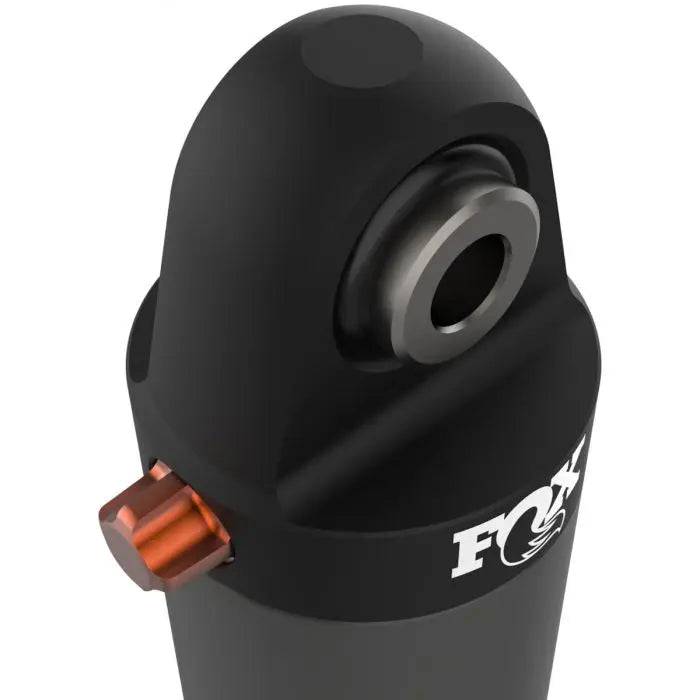

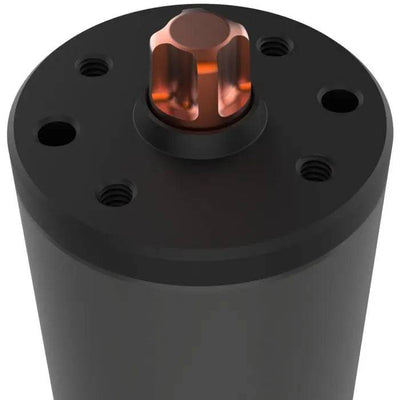

- Eyelet and 4-bolt mounting options
Carryover Features:
- Hard anodized 6061-T6 billet aluminum bump stop specific low flow race piston
- 1-5/8" hard chrome plated 4130 chromoly steel shafts
- Replaceable strike pad
| Travel |
Top Mount |
Shaft Size |
Compressed |
Extended |
| 2.45" |
Stem |
1-5/8" |
8.4" |
10.8" |
| 3.75" |
Stem |
1-5/8" |
11.7" |
14.82" |
| 2.45" |
Pinch |
1-5/8" |
9.5" |
11.95" |
| 3.75" |
Pinch |
1-5/8" |
11.7" |
15.45" |
| 2.45" |
Eyelet |
1-5/8" |
9.8"
|
12.25" |
| 3.75" |
Eyelet |
1-5/8" |
12.6" |
16.35" |
| 2.45" |
4-Bolt |
1-5/8" |
8.35" |
10.8" |
| 3.75" |
4-Bolt |
1-5/8" |
11.15" |
14.9" |
