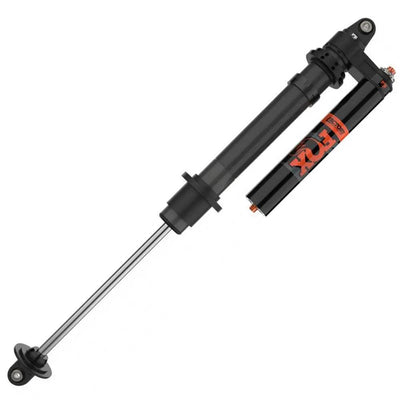

Fox 2.5 Factory Race Series Coil-Over Piggyback Reservoir Shock
Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride
Features:
- BODY: Smooth bore and honed seamless steel
- BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
- BEARING: Wire ring bearing design
- WEAR BAND: PTFE coated bronze impregnated steel piston wearband
- EYELET: 2” black anodized billet aluminum lower eyelet now standard
- FAV CAP: Orange anodized billet aluminum FAV cap
- COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
- SHAFT: 7/8" hard chrome plated 17-4 H900 stainless steel shafts
- PISTON: 6061-T6 hard-anodized billet aluminum 9-port high-flow piston
- VALVING: Tunable, velocity sensitive deburred valve shims
- SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
- OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
- HEIMS: PFTE-lined, heat-treated steel spherical bearings
- HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
- INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
- ADJUSTMENTS: Piston Valving - Compression, Rebound | Spring preload | Spring dual-rate crossover point
Configuration:
- RESERVOIR: Piggyback
- ADJUSTERS: Non-adjustable
- EYELET LENGTH: 1.95"
- MOUNTING: 1/2" x 1-1/2"
- SPRING COMPATIBILITY: 3.00" ID
| Travel | Reservoir Size | Extended | Collapsed |
| 8" | 2.55" x 10" | 24.45" | 16.5" |
| 10" | 2.55" x 10" | 28.45" |
18.5" |
| 12" | 2.55" x 10" | 32.45" | 20.5" |
| 14" | 2.55" x 14" | 37.45" | 23.5" |
| 16" | 2.55" x 14" | 41.45" | 25.5" |
