Jeep JL/JT 30" OnX6+ LED Light Bar Kit

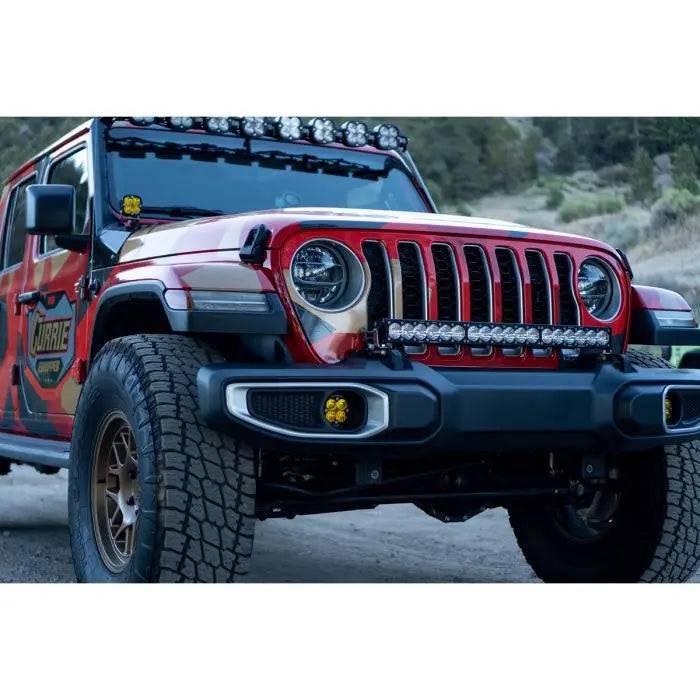

This Baja Designs lighting and wiring setup has been tested on the Jeep JL / JT with the plastic bumper to take the guess work out of installation!

At an impressive 31,910 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

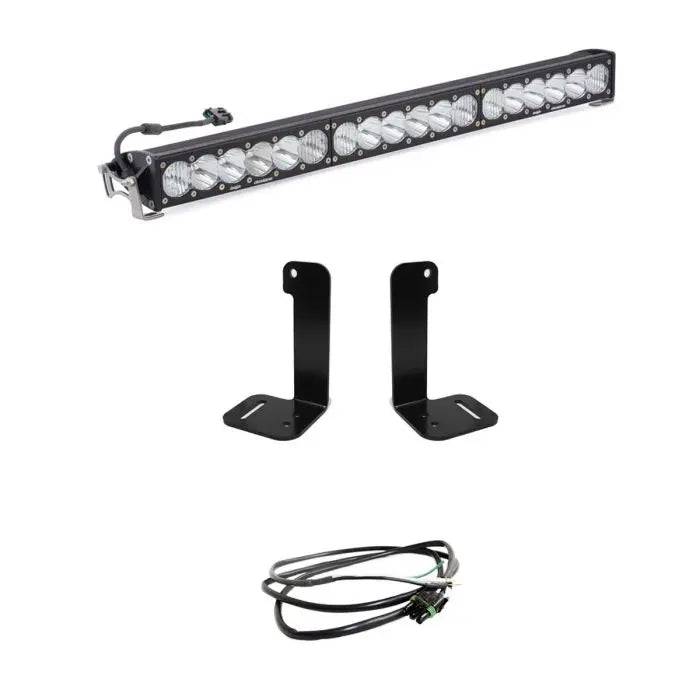

Includes:

• OnX6+ 30” LED Light Bar
• QTY (1) Wiring Harness (447657 only)
• QTY (1) Upfitter (447657UP only)
• Mounting Brackets
• Hi-Low Dongle

Features:

• Battery Management Technology - Elimination of Flickering at Low Voltage

• Battery Management Technology - Added Protection to Vehicle Wiring and Systems

• Battery Management Technology - Protection from Dangerous Current Spikes

• Battery Management Technology - The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
• Satisfactions Guarantee – 30 Day Money BackGuarantee

• Limited Lifetime Warranty – Complete Purchase Protection

• uService® – Replaceable Lenses And Optics

• ClearView® – All The Light, Right Where You Need It.

• MoistureBlock™ – Waterproof, Rain Proof, Submersible

• CopperDrive® – Only LED Driven At 100%

• 5000K Daylight – Less Driver Fatigue, Natural Color

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Specifications:

• Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs

• Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A

• Dimensions: 30" x 4.29" x 2.69"

• Weight: 11.45 lbs

• LED Life Expectancy: 49,930 Hours

• Front Lens: Hard Coated Polycarbonate

• Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize

• Bezel: Billet Machined Aluminum

• Hardware & Bracket Material: Stainless Steel

• Exceeds MIL-STD810G (Mil-Spec Testing)

• Built-In Overvoltage Protection

• IP69K (Waterproof up to 9ft & Pressure Washable)

• IK10 Compliant (Mechanical Impact Testing)
